SCP Cable Pantograph
Description

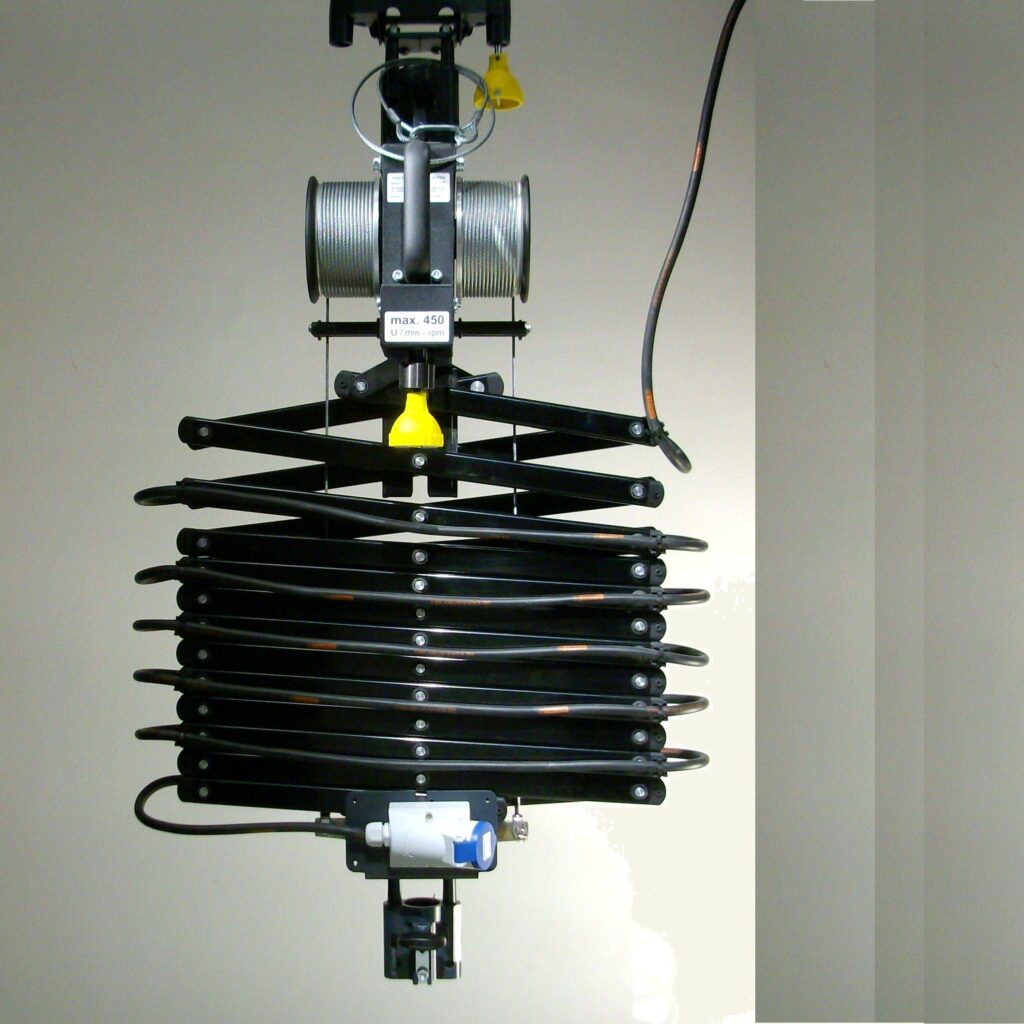

Cable pantographs allow the safe positioning of lighting equipment in studios with a ceiling height up to 7m. The extruded aluminum sections of the scissors ensure high torsional rigidity. The self-locking worm-gear drive and the use of oversized ø3mm steel cables, allows a safe and reliable operation of the equipment. The cable pantographs are equipped with an overload device, ensuring that the safe working load will not be exceeded. The powder coated metal construction guarantees durability, needed in professional environments. The standard lighting circuit is a 3 x 2,5mm² cable with rubber jacket and CEE17 16A connectors.
see also our other Versions: SMP Motorized Pantograph and SMPD Motorized Pantograph Double Scissors
Technical Specifications
| Technical Specifications | |
|---|---|
| Safe working load (SWL) | Max. 50kg, depending on top fixation |
| Lifting cables | ø3mm galvanized steel |
| Upper fixation | DIN spigot 28mm |
| Load attachment | DIN socket 28/16mm |
| Operation | Manual operation with a crank pole or battery powered operating pole |
Versions
| Order code | Min. length | Max. length | Weight | Studio height |
|---|---|---|---|---|
| SCP300-01 | 70cm | 300cm | 17kg | 4,5m |
| SCP430-01 | 80cm | 430cm | 20kg | 6,0m |
| SCP550-01 | 90cm | 550cm | 22kg | 7,0m |
Components & Accessories
| Part Number | Description |
|---|---|
| LTT504 | Tube Trolley for UTS tubes or pipes ø38 – 52mm |
| M-C150 | C-clamp with 28mm socket and 16mm spigot, rotatable |
| SCP-BD01 | Battery drill with charger and 2 batteries |
| SCP-TP60 | Telescopic operating pole, extension 2,0 – 6,4m with adapter for battery drill |
